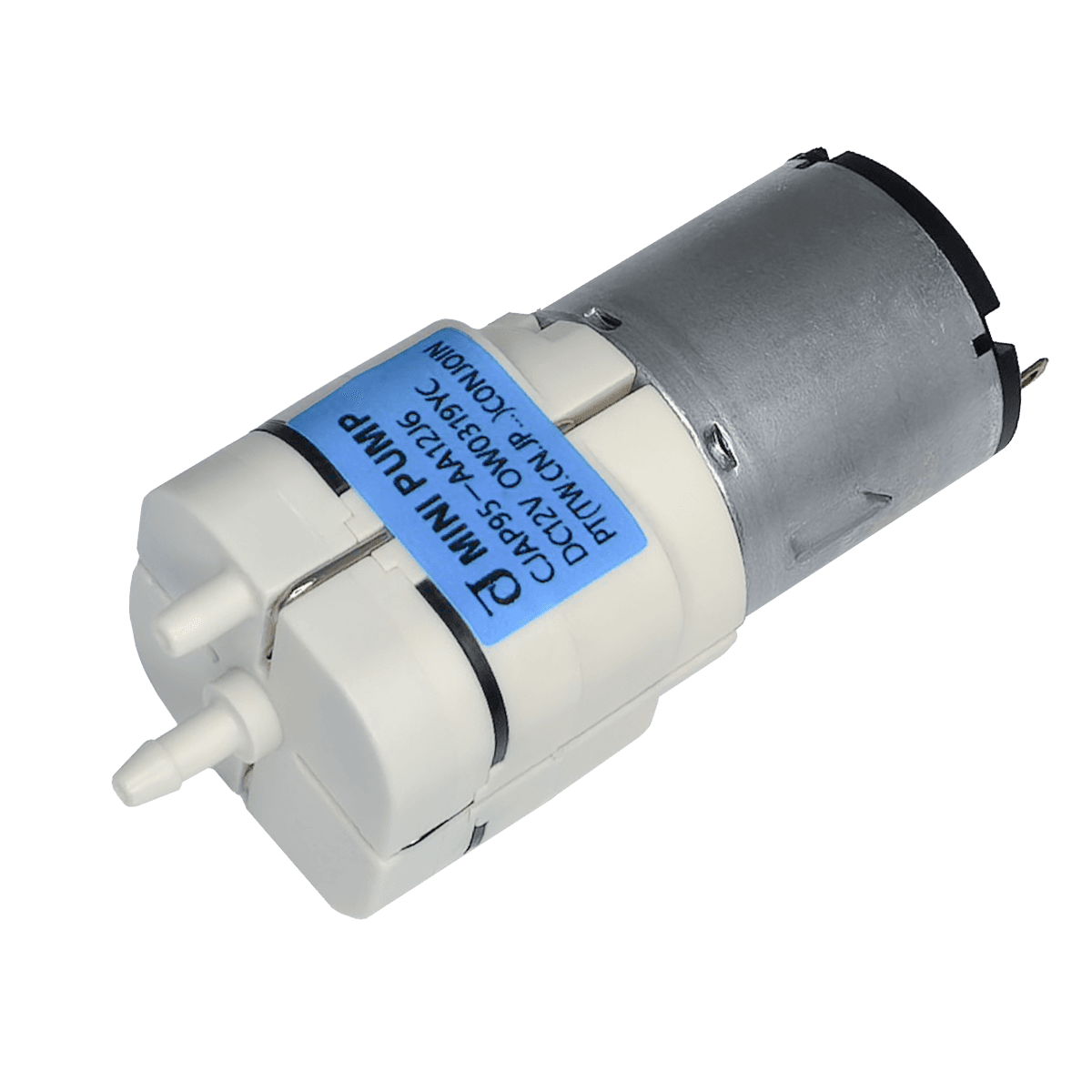

CJAP95-AA
Pressure pump
CJAP95-AA
cjap95-aa
Applications
High-end medical equipment, Health care equipment, Automotive products etc.
Specifications
Sub-category
Rotary diaphragm air pump
Electrical
Rated voltage
DC 12V
Current under load
≤650mA
Rated power
≤7.8W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
≥5L/min
Max pressure
≥100KPa
Noise under no load
≤60dB@30cm
Medium
Air
Environmental
Working environment
5°C~45°C, 30%~80%RH
Durability
Life test
2000 cycles, DC12V, @55KPa, 15min ON, 5min OFF
Physical
Pump head dimensions
32*32mm
