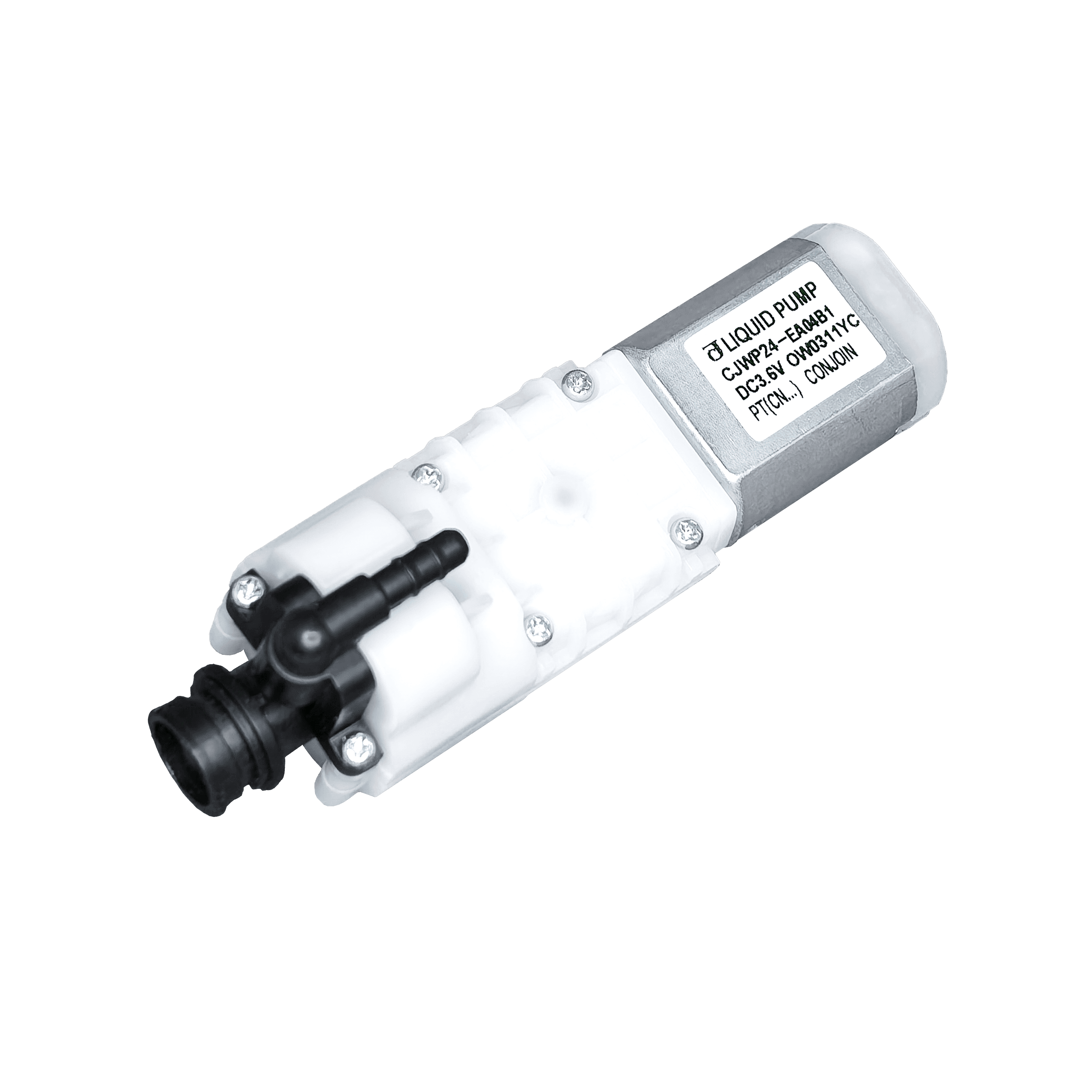

CJWP24-EA
Liquid pump
CJWP24-EA
cjwp24-ea
Applications
High-end medical equipment, Health care equipment, Clean appliance, Cosmetology and bodycare, Personal care etc.
Specifications
Sub-category
Eccentric diaphragm liquid pump
Electrical
Rated voltage
DC 3.6V
Current
≤2.40A
Rated power
≤8.6W
Start working voltage
≤1.5V
Rated voltage of motor (recommended range)
DC3-24V
Performance
Flow rate
≤300mL/min
Impact force
≥12gf
Medium
Water
Peak working pressure
≥600kPa
Pulse frequency
≥20Hz
Noise under load
≤76dB @10cm
>400 mL/min
Environmental
Working environment
5°C~45°C, 30%~80%RH
Durability
Life test
12000 cycles, DC3.6V, with nozzle φ0.60mm, 1min ON, 1min OFF
Physical
Pump head dimensions
φ30
