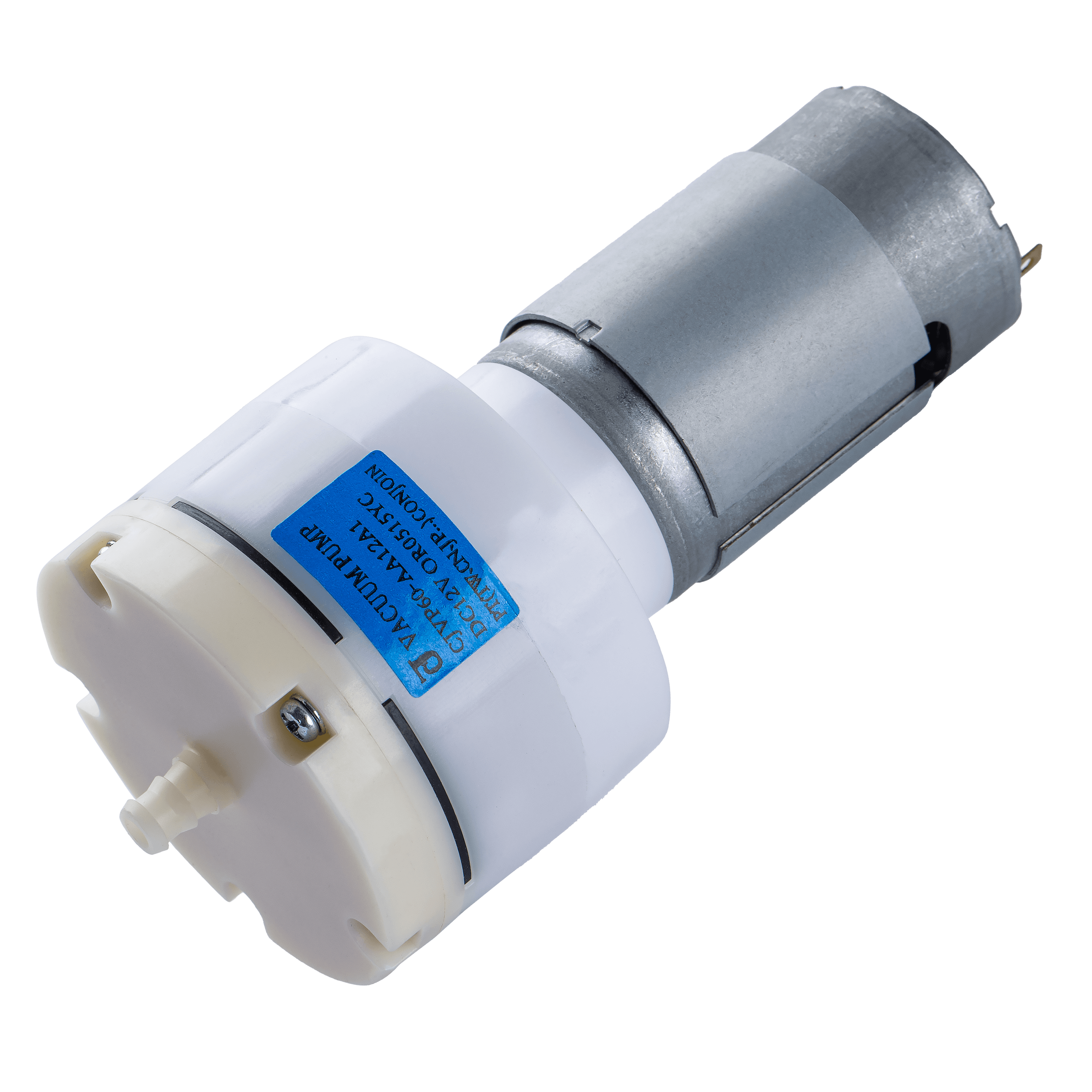

CJAP60-AA

Pressure pump
CJAP60-AA
cjap60-aa
Applications
High-end medical equipment, Automobile, Health care equipment, Household appliance, Kitchen and bathroom etc.
Specifications
Sub-category
Rotary diaphragm air pump
Electrical
Rated voltage
DC 24V
Current under load
≤700mA
Rated power
≤17W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
>10L/min
Max pressure
≥400mmHg
Noise
≤65dB
Leakage
< 3 mmHg/min
Environmental
Working environment
5°C~45°C, 30%~85%RH
Durability
Life test
400H (DC24V, 1500CC capacity, 15min ON, 5min OFF per cycle)
Physical
Pump head dimensions
φ60
