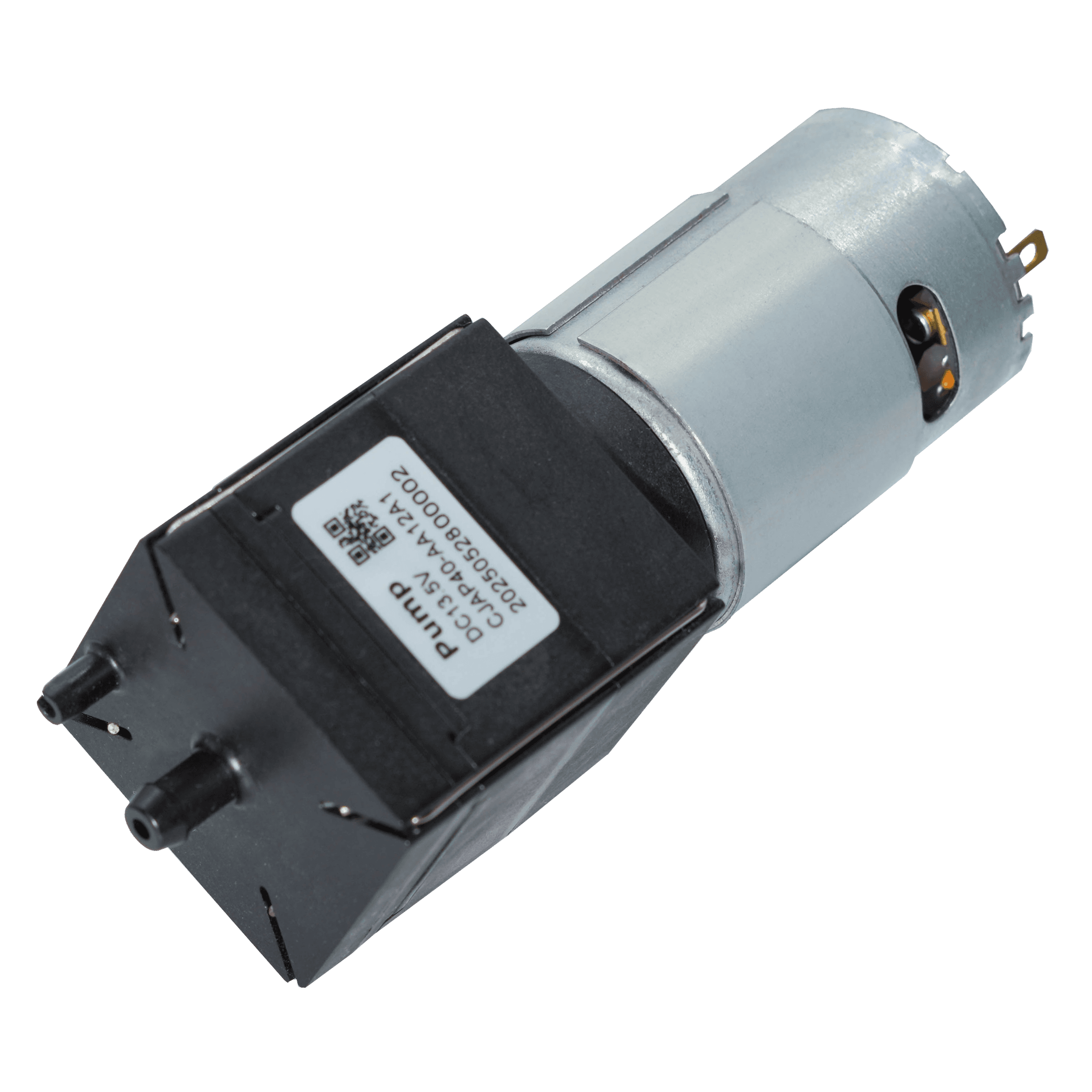

CJAP40-AA
Pressure pump
CJAP40-AA
cjap40-aa
Applications
High-end medical equipment, Health care equipment, Automotive products etc.
Specifications
Sub-category
Rotary diaphragm air pump
Electrical
Rated voltage
DC 12V
Current
≤1100mA
Rated power
≤13W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
≥8.5L/min
Max pressure
≥80KPa
Noise under no load
≤60dB@30cm
Medium
Air
Environmental
Working environment
5°C~45°C, 30%~80%RH
Durability
Life test
8,000 cycles, DC12V, @40KPa, 7.5min ON, 1min OFF
Physical
Pump head dimensions
40*40mm
