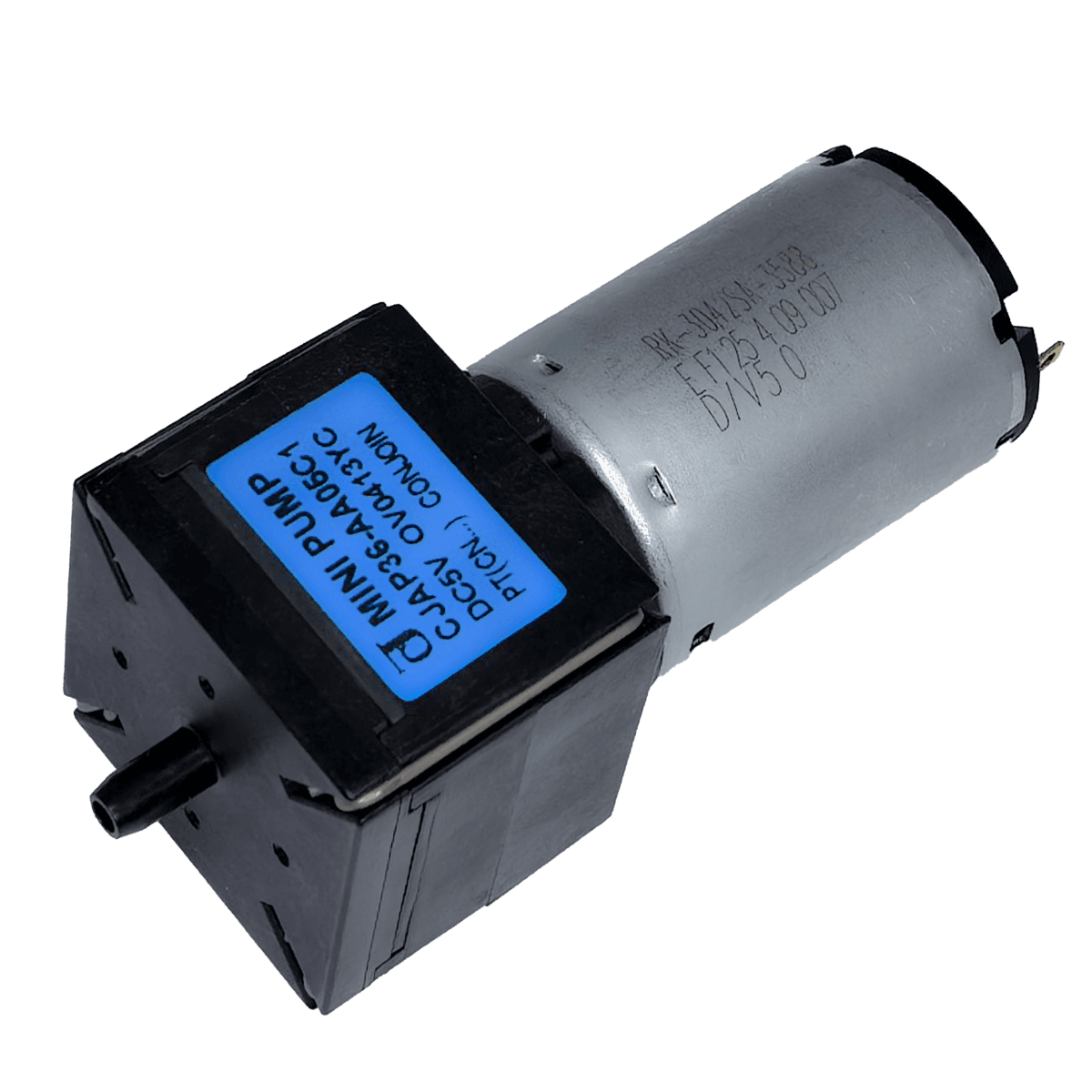

CJAP36-AA
Pressure pump
CJAP36-AA
cjap36-aa
Applications
High-end medical equipment, Health care equipment, Automotive products etc.
Specifications
Sub-category
Rotary diaphragm air pump
Electrical
Rated voltage
DC 12V
Current
≤350mA
Rated power
≤4.2W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
≥5.5L/min
Max pressure
≥90KPa
Noise under no load
≤55dB@50cm
Medium
Air
Environmental
Working environment
5°C~45°C, 30%~80%RH
Durability
Life test
1,620,000 cycles, DC12V, @45kPa, 4s ON, 6s OFF
Physical
Pump head dimensions
≤36*36mm
