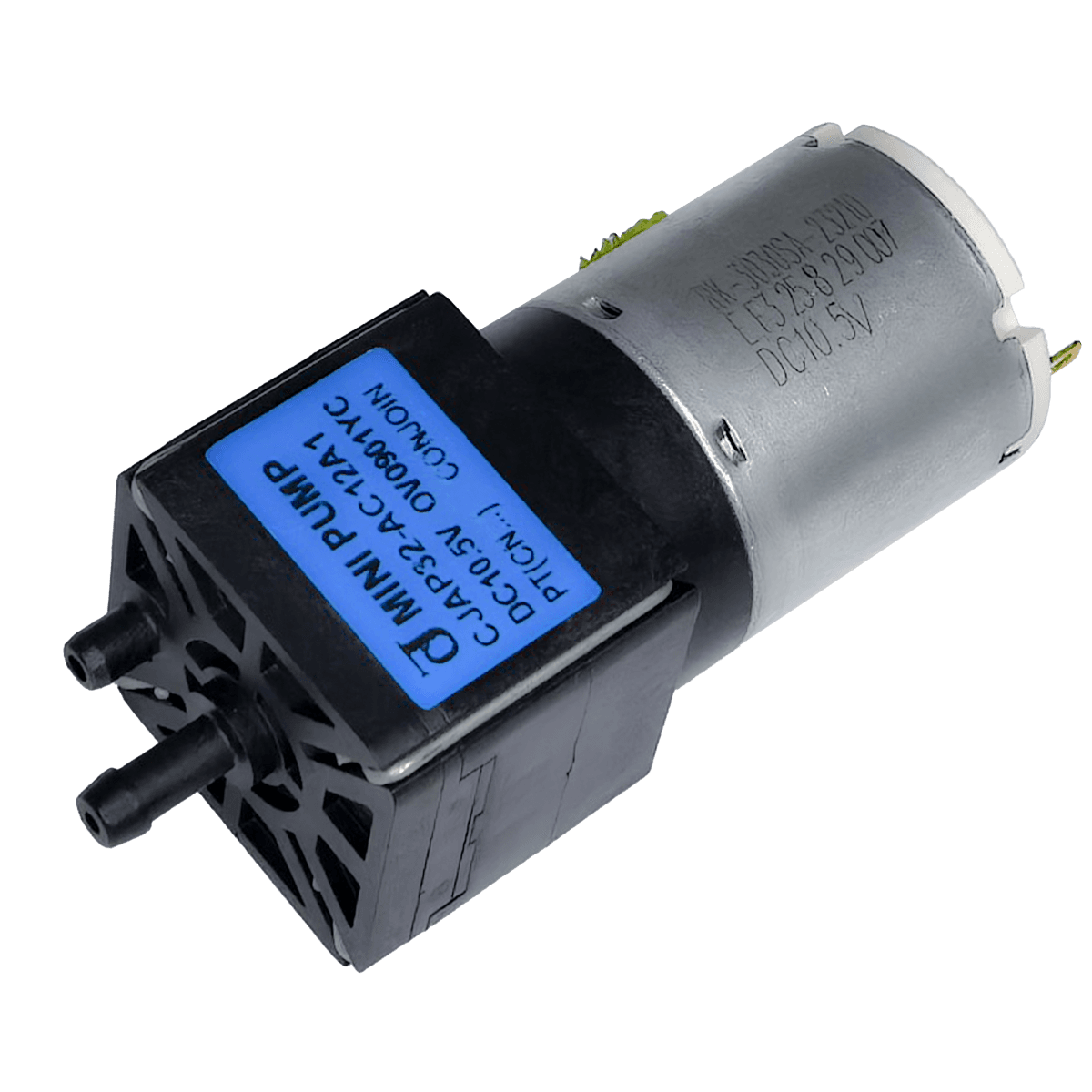

CJAP32-AC
Pressure pump
CJAP32-AC
cjap32-ac
Applications
High-end medical equipment, Health care equipment, Household appliance etc.
Specifications
Sub-category
Rotary diaphragm air pump
Electrical
Rated voltage
DC 12V
Current
≤900mA
Rated power
≤11W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
≥5L/min
Max pressure
≥200KPa
Noise under no load
≤65dB@30cm
Medium
Air
Environmental
Working environment
5°C~45°C, 30%~80%RH
Durability
Life test
4,000 cycles, DC10.5V, @150kPa, 60s ON, 10s OFF
Physical
Pump head dimensions
32*32mm
