OUR PRODUCTS

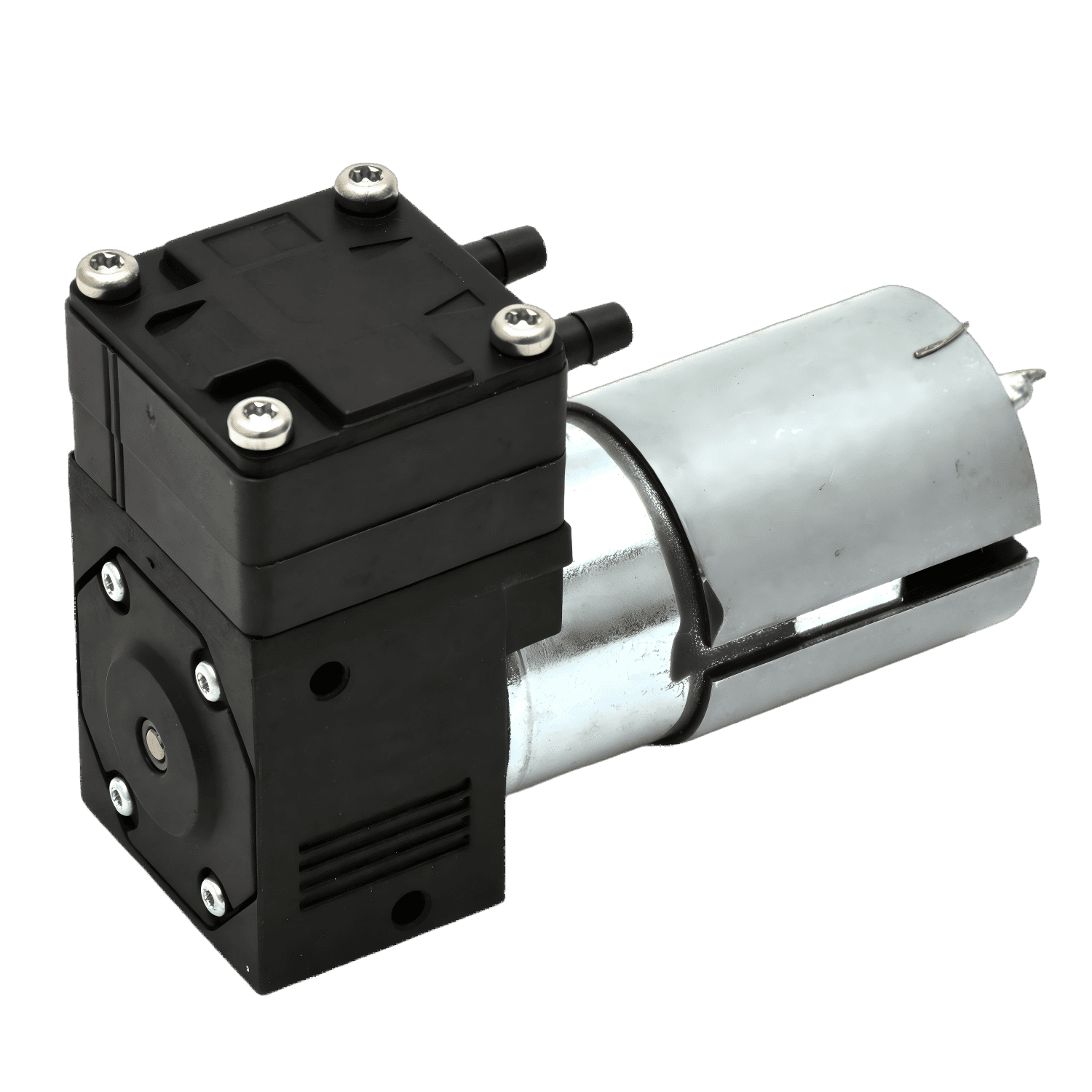

CJAP30-BA24B1
Pressure pump
CJAP30-BA24B1
cjap30-ba24b1
Applications
High-end medical equipment, Automobile, Health care equipment, Household appliance, Kitchen and bathroom, Cosmetology and bodycare etc.
Specifications
Sub-category
Eccentric diaphragm air pump
Electrical
Voltage
DC 24V
Current under no load
<180mA
Max current
<200mA
Rated power
<4.8W
Rated voltage of motor (recommended range)
DC3-36V
Performance
Free flow
>1.5L/min
Max pressure
>80KPa
Noise
<80dB
Medium
Air
Environmental
Working environment
5°C~45°C, 30%~85%RH
Durability
Life test
100H (room temperature, DC24V, 30s on / 30s off per cycle)
Physical
Pump head dimensions
≤65*65mm
